SUE Survey — Subsurface Utility Engineering to Quality Levels

SUE is not a survey technique — it is a way of grading how much your utility information can be trusted, and pricing the risk that remains. We deliver to a specified quality level and state what was achieved, feature by feature.

1.5 LAKH+ KMGPR Survey Completed
100 KM/DAYPeak Survey Output
700 KMFastest 30-Day Delivery
₹24/MStandard Rate · Min. order ₹50,000 NCR · ₹1,00,000 India

23 years, 1.5 lakh+ km surveyed, 100 km a day at full stretch and 700 KM in a single 30-day month, all delivered on owned fleet. Outside Delhi NCR we accept projects from ₹1,00,000 upward, since rigs and crews travel from our Faridabad base. Within NCR the minimum order is ₹50,000 (covers up to 2 km).

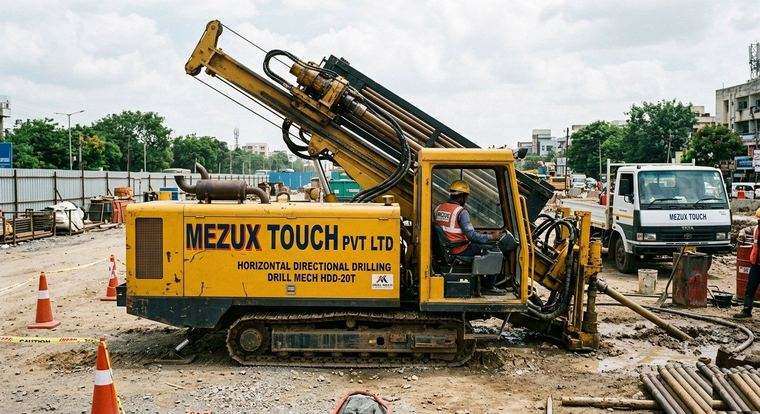

Subsurface Utility Engineering deliverables prepared for an infrastructure project

Overview

A line on a drawing is not a promise

Two utility drawings can look identical and mean completely different things. One was copied from a municipal record of unknown vintage; the other was detected in the field and physically exposed at the crossing that mattered. SUE exists so that a designer, a client and a contractor can tell those two apart before someone excavates on the strength of the wrong one.

  • Quality level assigned per feature, not per job
  • Written into tender documents properly
  • Risk register the design team can actually use
  • Deliverables in ASCE 38 / PAS 128 conventions

Process

How a SUE package is built up

01

Scoping the Level

Agreeing what confidence the design decisions actually require, before any fieldwork.

02

Records Gathering

Formal requests to every asset owner whose plant may fall inside the corridor.

03

Field Detection

Geophysical survey across the corridor establishing horizontal position and indicative depth.

04

Selective Exposure

Trial holes at the crossings where a design decision cannot tolerate uncertainty.

05

Reconciliation

Records, detection and exposure compared — contradictions investigated, not averaged.

06

Risk Register

Residual unknowns listed with their consequence, so the design team prices them.

ASCE 38& PAS 128
1.5 L+KM Surveyed
28+States/UTs
23Years

Procurement

Writing SUE into a tender so it means something

The most common failure we see is not a bad survey — it is a tender that asked for “utility survey” and got exactly that, with no basis stated. Four things make a specification enforceable.

State the level, per element. A corridor may need field detection throughout but physical exposure only at major crossings. Saying so converts a vague scope into a priced, comparable one.

Name the deliverable format. CAD layer convention, coordinate system, depth attribute and confidence attribute. Without these you receive a drawing your design software cannot ingest cleanly.

Require limitations to be declared. Areas of no access, poor ground response and untraceable services must appear in the report. A survey with no stated limitations has either not looked hard enough or is not telling you something.

Fix who verifies. Trial holes are a civil activity with permits, traffic management and reinstatement attached. Leaving this ambiguous is how a SUE scope turns into a variation claim.

Our engineers routinely help clients and consultants draft this scope before it goes to tender — including where we are not the eventual surveyor. The technical framework behind the levels is set out on our utility mapping page.

Deliverables

What each level actually gets you

Records-based outputA plotted compilation of asset-owner records. Adequate for feasibility, route options and early cost planning. Not a basis for excavation.
Surface-correlated outputRecords checked against surveyed chambers, valves and covers. Alignment confidence improves; depth remains inferred.
Detected outputField geophysics giving horizontal position to a stated tolerance with indicative depth. The normal basis for design and for excavation planning.
Verified outputPhysical exposure at nominated points giving measured position, depth, diameter and material. Applied selectively where consequence is high.
Attribute setEvery feature carries service type, detection method, confidence, source and survey date in the drawing data
Formats issuedSigned PDF report and trial-hole record sheets as standard; CAD (DWG/DXF) to client layer standard and GIS (SHP/KML) issued when ordered, quoted separately
Accompanying reportMethod, coverage, equipment, calibration basis, declared limitations and the residual risk register
Revision controlIssued under document control so a superseded drawing cannot quietly remain in circulation

Level naming follows the ASCE 38 and PAS 128 conventions commonly referenced on Indian infrastructure work. A project does not hold a single uniform level — different features are established by different means, and an honest deliverable shows that variation openly rather than flattening it into one reassuring claim.

Value

Why clients pay for the higher levels

Design certainty. A metro alignment, a flyover pile cap or a trunk sewer designed around an assumed utility position becomes a redesign when the assumption fails. Verification at the few genuinely critical points is cheaper than one redesign.

Claim defence. Ground-condition disputes are settled on evidence. A dated, coordinate-tied, method-declared record produced before work started is the strongest document a contractor can hold.

Programme protection. Utility diversions have their own approval timelines with asset owners. Knowing at design stage which diversions are needed lets those applications start months before the site does.

Safety. HT power and gas mains do not forgive a strike. The reason regulators and major clients increasingly specify SUE is that it is the only framework that forces the question of how confident you actually are.

Governance

How confidence is kept honest

Every feature carries the method that produced it, so an auditor can see whether a line came from an asset-owner record or from a measured trial hole years after issue. Where a detected position and an owner's record disagree, both are shown and the conflict is written into the risk register rather than resolved by preference. Trial-hole records are photographed with the pit dimensions, the exposed service and a levelled reference so the depth figure is defensible. Coordinate framework, layer standard and attribute schema are agreed in writing before drafting begins, because retrofitting a client's CAD standard afterwards is where transcription errors enter. Draft issue is reviewed by an engineer independent of the field team, and superseded revisions are withdrawn under document control. The full pack — raw geophysical data, records correspondence, trial-hole sheets and issued drawings — is archived under our ISO 9001:2015 system for the retention period the client specifies.

FAQ

SUE survey — common questions

No. A utility survey is fieldwork. SUE is a framework that records how each piece of information was obtained and how much confidence it carries, so the residual risk can be managed rather than assumed away.

It depends on the decision being made. Route options can be settled on records. Excavation planning needs field detection. A pile cap or a deep crossing over a critical main usually justifies physical verification at that point. We help clients set this per element rather than blanket-specifying.

Yes. Metro corridors, industrial plants, airports, campuses, power evacuation routes and pipeline projects all use the same framework. Anywhere a design depends on what is buried, the grading question is the same.

We can, including the permission, traffic management and reinstatement, since our RoW and civil teams are in-house. Some clients prefer to use their own contractor for the excavation and take only our nomination and recording — both arrangements work.

Yes, and it is worth doing. The usual finding is a drawing with no declared limitations, no confidence attributes and no stated basis for its depth figures — which tells a design team far less than it appears to.

Records gathering is usually the long pole, because it depends on how quickly asset owners respond. Field detection is programmable and predictable; trial holes depend on permissions. We give a realistic programme with those dependencies shown separately.

Peak sustained output on open corridors reaches up to 100 km a day, running day and night shifts on our own systems. A single 30-day programme has delivered 700 KM, which remains our record. In total we have completed more than 1.5 lakh km of GPR survey. What your own route achieves depends on congestion, access and the deliverable specified.

Specifying utility survey for a tender?

Send us the corridor and the design decisions that depend on it — we will help set the levels before it goes out, not after.

Discuss a SUE Scope

SUE survey — quality levels, output and detailed questions

Mezux Touch delivers Subsurface Utility Engineering to stated quality levels, which is a framework rather than a technique. Its purpose is to make explicit how each piece of utility information was obtained, so a designer knows what to trust. Quality Level D is records research alone. Level C reconciles records against visible surface features. Level B is field detection by radar and electromagnetic locating. Level A is physical verification at a specific point. A drawing that does not state its level is asserting equal confidence in a line traced from a 1970s record and a line exposed in a trial hole, which is exactly the error SUE exists to prevent.

How the work is run

The level is set per element rather than blanket-specified across a project, because a pile cap position needs Level A while a general corridor may not. We help clients decide that at scoping, since specifying Level A everywhere wastes money and specifying Level B everywhere leaves the critical points unresolved. Field detection uses radar and electromagnetic locating together and reconciles them, reporting conflicts rather than adopting whichever answer is tidier. Where verification is specified, the trial hole position is chosen to resolve the design question rather than merely to confirm something already confident.

What you receive

A signed report in which every feature carries its quality level as an attribute, not as a note in the corner, with CAD/GIS drawing sets available as a separately quoted item. A residual risk register listing what remains unknown after the survey, written so it can be adopted directly into the project risk register rather than transcribed. Trial hole records with photographs, dimensions and levels where Level A was specified. A signed report setting out what was achieved at each level and, importantly, where the specified level could not be reached and why. Issued under document control, so a superseded revision cannot stay in circulation on a live project.

Beyond the basics

Which quality level should we specify? Rarely one across a whole project. Level A where a pile cap or deep structure cannot tolerate uncertainty, Level B as the working basis elsewhere. We help set it per element.

What is the difference between GPR and SUE? GPR is a detection method; SUE is a framework grading how information was obtained. A GPR survey typically delivers Level B.

Why does the residual risk register matter? Because it states what is still unknown. A drawing without one implies everything was found, which is never true of any survey.

Can you upgrade a Level B survey to Level A later? Yes, by verifying specific points. That is often the sensible sequence: detect broadly first, then verify only where the design actually depends on it.

Do you issue under document control? Yes, which matters on live projects because it prevents a superseded revision continuing to circulate after a finding changes.

Terms used on this page

Quality Level A — physical verification at a point, the only level that confirms a service by exposing it. Quality Level B — field detection by radar and electromagnetic locating, without physical exposure. Quality Level C — records reconciled against visible surface features such as chambers and covers. Quality Level D — records research alone, with no field work of any kind. Residual risk register — a schedule of what remains unknown after survey, for adoption into the project risk register.

At a glance
Quick answer

Subsurface utility engineering (SUE) in India grades every buried service by how it was found – records, surface features, field detection or exposure – so designers know what to trust. Mezux Touch delivers the field-detection level with owned GPR and EM, billed at ₹24 a metre with a minimum order of ₹50,000 in Delhi NCR and ₹1,00,000 elsewhere; trial holes, drawing sets and GST are extra.

Rates and page checked:

Mezux survey team standing with radar carts and safety equipment
Field detection for every SUE package is carried out by our own payroll crews.
Layered utility map separating power, water, gas and telecom services
Each service carries its own quality level, so mixed confidence stays visible to the designer.
Workers hand-digging a trial hole to expose a buried service
Trial holes are nominated only where a design decision cannot carry depth uncertainty.
Checklist graphic with ticked items for a survey specification
A clear survey clause decides whether a SUE package can be priced and compared fairly.
How it works · Grading utility data by level
watergaspowerEACH LINE ON ITS OWN LAYER WITH DEPTH
  1. STEP 1Records gathered and compared
  2. STEP 2Radar and EM detection
  3. STEP 3Critical points verified
  4. STEP 4Levels stated per feature

When does a project in India need subsurface utility engineering (SUE)?

Subsurface utility engineering (SUE) in India is usually called for when a design decision depends on buried services and a wrong assumption would be costly to undo. Projects that commonly benefit include:

  • Road widening, flyovers and grade separators, where pile caps and retaining walls land in streets full of mains and cables;
  • Metro and suburban rail corridors, with piers, station boxes and depots on crowded urban land;
  • Smart city and drainage upgrades, which push new services into roads already holding several generations of old ones;
  • Trenchless crossings under highways, railway lines and canals, where a bore must thread between existing lines;
  • Industrial plants and campuses extending or rebuilding on ground whose service records are incomplete.

A tender often signals that SUE is expected even when it does not use the term. Look for references to ASCE 38 or PAS 128, to quality levels or confidence per feature, to a utility diversion plan, or to a residual risk register as a deliverable. Any of these means the client wants more than a list of finds.

The framework is not always needed. A short private cable run or a single pipe connection is normally served well by a standard GPR route survey with ground marking, and grading every line would add paperwork without changing a decision.

How is a SUE survey priced on the Mezux rate card?

The field-detection part of a SUE package – radar and EM survey along the corridor or across the site – is billed on our standard rate card. A standard GPR survey costs ₹24 per metre. Where the design needs an L-section depth profile of the detected services running along the alignment, the price rises to ₹32 per metre. Both carry GST.

  • Every order has a minimum value.
  • Outside Delhi NCR, a ₹1,00,000 minimum applies per project; inside NCR, the minimum order is ₹50,000.
  • Large orders pay a reduced rate on every metre: 75% of the card once the total exceeds 100 km, 60% beyond 500 km and 50% once it passes 1,000 km.

Verification by trial pits or boreholes is done on request and quoted separately, since each pit depends on its location, permissions and reinstatement. Separate lines also cover crew travel and mobilisation, any night shift, traffic management or permits, and CAD/GIS drawing sets carrying quality-level attributes. As an illustration, a 12 km road-widening corridor surveyed at field-detection level comes to ₹2,88,000 before GST, or ₹3,84,000 with an L-section; any verification pits nominated afterwards are then priced on their own. Every slab is set out on our GPR survey price list.

Where can you read more about subsurface investigation services in India?

These pages expand on the parts of a SUE package that clients ask about most often:

For sector and city context, see GPR survey for metro rail projects, the highways and expressways sector page, and underground utility mapping in Ahmedabad. Our subsurface investigation services in India are delivered by in-house crews from Faridabad on 58 company-owned GPR systems, and survey work is never sub-let.

TIP 1

Request records early

Asset-owner replies take the longest, so send record requests as soon as the corridor is known, before fieldwork is booked.

TIP 2

List the decision points

Mark pile caps, deep crossings and bore lines where the design cannot accept uncertainty; they guide where verification goes.

TIP 3

Budget pits separately

Keep a separate allowance for trial pits or boreholes, because their number is fixed only after detection results are reviewed.

TIP 4

Stage it sensibly

Detect broadly once the alignment settles, then verify at chosen points; remember each order carries the minimum order value.

TIP 5

Plan access windows

Note roads that can be scanned only at night and plots needing gate passes, so the programme and quote reflect them.

Insights

SUE survey in numbers

Rate per metre by order size

Standard vs L-section GPR survey, ₹ per metre

StandardL-Section
₹0₹20₹40₹60₹80₹24₹32Up to 100 km₹18₹24100+ km₹14.4₹19.2500+ km₹12₹161,000+ km

Source: Mezux rate card, October 2026.

What a short route costs

Standard ₹24/m, ₹ lakh before GST

₹0 L₹5 L₹10 L₹15 L₹20 L₹1 L4 km₹2.4 L10 km₹6 L25 km₹14.4 L60 km

Source: Mezux rate card – amounts before GST.

Our recorded output

Route surveyed, km

0 km300 km600 km900 km1200 km100 kmPeak day700 kmFastest 30 days

Source: Mezux delivery records.

Fact table

FactValueSource
Field detection, standard GPR survey₹24 per metreMezux rate card
L-section GPR survey₹32 per metreMezux rate card
Minimum order₹50,000 Delhi NCR (up to 2 km); ₹1,00,000 rest of India (up to 4 km)Mezux rate card
Management system certificatesISO 9001:2015, ISO 14001:2015, ISO 45001:2018Mezux records
Company-owned GPR systems58Mezux records

Verification pits, boreholes, mobilisation, night-shift work, traffic management and drawing sets are all priced outside the metre rate; GST extra.

Best prices

Get SUE Survey in India at Best Prices

Detection at card rate

The field-detection level of a SUE package is billed at ₹24 per metre, the same published rate as any GPR route survey.

Verify only critical points

Trial pits are nominated after detection, so you pay for exposure only where a pile, box or bore truly needs it.

Depth profile when useful

Add the ₹32 per metre L-section only on stretches where designers need depths shown continuously along the route.

Long corridors cost less

Programmes beyond 100 km pay three-quarters of the card rate on every metre, with larger reductions past 500 and 1,000 km.

No hired systems

Company-owned radar and locators run by our own staff keep equipment hire and sub-contractor margins out of the price.

Clear separate items

Drawing sets, night shifts, traffic arrangements and mobilisation are listed individually, so packages from different bidders compare cleanly.

Latest price list

SUE Survey Rates – Current Rates

ServiceUp to 100 kmAbove 100 km
(25% off)
Above 500 km
(40% off)
Above 1,000 km
(50% off)
Standard GPR Survey
min. order ₹50,000 NCR · ₹1,00,000 India
₹24/m₹18/m₹14.40/m₹12/m
L-Section GPR Survey
min. order ₹50,000 NCR · ₹1,00,000 India
₹32/m₹24/m₹19.20/m₹16/m

Per-metre rates, GST added on the invoice. The slab discount covers the full order quantity, not only the part above the slab. A ₹1,00,000 per-project minimum applies outside Delhi NCR. Separate from the per-metre rate: mobilisation, night shifts, traffic or permission arrangements and CAD/GIS drawings. Updated 23 October 2026.

Price range

Lowest rate₹12/mStandard, above 1,000 km
Highest rate₹32/mL-Section, up to 100 km
Minimum order₹50,000Delhi NCR (up to 2 km) · ₹1,00,000 Rest of India (up to 4 km)
FAQ

More questions about SUE surveys

Is SUE compulsory on Indian infrastructure projects?

No single rule makes it compulsory on every project. Whether a SUE approach is required depends on the client's specification or contract. Some tenders name quality levels, ASCE 38 or PAS 128; others ask only for a utility survey. Read the survey clause carefully and ask the client which level each element needs.

Can SUE field detection be carried out at night on busy roads?

Yes. Radar and EM locating work the same in darkness, and on arterial roads night scanning is often safer and allowed by the road owner. Night-shift working is charged as its own item, outside the metre rate, together with any traffic arrangements the road needs.

How many trial holes does a SUE package usually need?

There is no fixed number. It depends on how many points in the design cannot accept depth or identity uncertainty, such as pile caps, box walls and bore lines beside critical mains. We propose locations after reviewing detection results, and you decide how many to open.

Can a SUE survey be carried out in stages as the design develops?

Yes, and that is often sensible: records research first, field detection once the alignment is reasonably firm, and verification when the critical design points are known. Each stage placed as a separate order carries the minimum order, so combining detection for several corridors in one order can work out cheaper.

Is the per-metre rate higher for SUE work than for a normal GPR survey?

No. Field detection is billed at the same ₹24 per metre, or ₹32 with an L-section. What changes is the scope around it: verification pits, drawing sets with quality-level attributes and any night or traffic arrangements are quoted as separate items.

Can SUE results go into our GIS or BIM model?

Yes, as a CAD or GIS drawing set, which is quoted separately from the survey rate. Each feature can carry its quality level, method and survey date as attributes. Share the client's layer and attribute requirements before fieldwork so the set is built to them from the start.

Get a quote

Send us the corridor and its design decisions

What to send for an exact quote

  • Start and end points of the route, or a KML
  • District and site type
  • Survey type: standard or L-section
  • When you want the crew on site
Standard GPR₹24/m
L-Section GPR₹32/m

₹24/m · Min. order ₹50,000 — Delhi NCR (up to 2 km) · Min. order ₹1,00,000 — Rest of India (up to 4 km) · GST extra · 25–50% off above 100 km.

What happens next

  1. Scope check – we confirm route length, crossings and L-section need.
  2. Written quote – rate, slab, minimums, extras and a day-by-day programme.
  3. Mobilisation – our own crew and systems on the agreed date.

Get a Quote
