What is a cable trench and what decides its size?

A cable trench is the open cut in which power cables are laid directly in the ground, bedded, protected and backfilled. On power distribution routes it is still the most common way to lay cable outside crowded city centres, and its size is not one fixed number. Width and depth follow from the cable voltage, how many cables share the cut, how far apart they must sit, and what lies above, such as a road or farmland.

Most Indian utilities base their drawings on IS 1255, the code of practice for installing power cables up to 33 kV, and then add their own details. This guide describes common practice so you can plan and estimate. For the final figures, follow your DISCOM or utility specification; it takes precedence over any general table, including the one below.

How deep should a cable trench be?

Cable trench depth is normally written as the minimum cover from finished ground level to the top of the cable, not to the trench floor. The floor sits lower by the bedding layer and the cable diameter. Indian electrician training notes and many utility specifications quote these typical minimums:

Add about 75 mm of bedding and the cable's own diameter, and excavation for an 11 kV cable comes to roughly a metre. Owners often ask for extra cover under future road widening, in farmland that is ploughed deep, or where heavy vehicles cross. Shallower cover with added mechanical protection is sometimes accepted in rock, but only where the specification says so.

How wide should the trench be for one or more cables?

For a single cable, a widely used minimum width is about 35 cm. That leaves room to handle the cable and spread bedding and covers evenly. When several cables lie side by side, cable trench size grows with their number. A frequently cited layout keeps about 20 cm centre to centre between cables in a flat row and about 15 cm from the outer cable to each trench wall.

On that basis a trench for three HT cables in one row is around 70 cm wide before working space is added. Spacing is not only about neatness. Cables packed close together heat one another and must be derated, so a designer may widen the gaps rather than buy a larger conductor.

Where HT and LT cables share a corridor, many utilities place them in separate tiers or separate cuts, with HT deeper. Telecom cables are usually kept a specified distance away from power cables.

What goes into the trench besides the cable?

A finished trench is a set of layers, each with a job.

Bedding

Roughly 75 mm of riddled soil or clean sand under the cable gives an even, stone-free bed. Sharp stones left on the floor are a common cause of sheath and insulation damage once backfill settles.

Cover layer

A similar layer of sand or sifted soil over the cable protects the outer sheath while the trench is filled.

Protective covers

Bricks laid breadthwise or precast cable cover tiles sit over the cable along its full length, extending a little beyond the outer cables when there are several.

Warning tape and markers

A printed warning tape some distance above the cable, and route markers at the surface, warn the next excavator that a live line lies below.

Backfill and reinstatement

Excavated soil goes back in compacted layers, and the road or footpath is restored to the owner's standard.

Which terms appear on a cable trench drawing?

Trench drawings and specifications use a short vocabulary. Knowing it avoids arguments on site.

• Cover: depth of soil from finished ground level to the top of the cable or duct.
• Formation level: the trench floor before bedding is placed.
• Bedding and surround: the sand or sifted soil under, beside and over the cable.
• Spacing: the centre-to-centre distance between neighbouring cables, which affects heating.
• Derating factor: the reduction in a cable's current rating caused by grouping, depth or soil conditions.
• Joint bay: a widened, deepened pit where two cable lengths are jointed.
• Reinstatement: rebuilding the road, footpath or verge surface after backfill.
• As-laid record: the measured position and cover of the cable once it is in the ground.

How does cable trench design change at crossings and in crowded roads?

Open trenches rarely run unbroken. At road crossings the cable is usually pulled through a pipe or duct set deeper than the running trench, often with spare ducts for later circuits. Drains, culverts and canals may be passed in a bore beneath them. Rail crossings follow the railway's own terms and permission.

Crowded urban roads change the plan more than any table. Water mains, sewers, gas pipes and telecom ducts already occupy the verge that looks clear on the drawing. When one crosses the trench line, the cable must dip under it or the trench must move sideways, and both choices change width, depth and quantity. Sound cable trench design therefore starts from what is already buried, not from road width alone.

Joint bays need extra room as well. Where two drum lengths meet, the trench is widened and deepened locally for the jointers, and the bay should sit on ground known to be free of other services.

Why scan the trench line with GPR before digging?

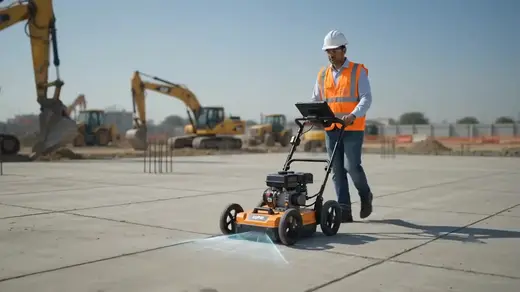

Most utility strikes happen within the first metre or so of excavation, which is exactly the band a power trench works in. Ground penetrating radar (GPR) run across the planned line records reflections from underground utilities such as pipes, ducts and cables, while an electromagnetic cable locator picks up live conductors. Together they let the crew paint existing services on the surface before the excavator arrives.

The survey also shapes the design. If a water main runs along the planned centre line, the trench can shift before setting out instead of after a burst. Radar penetration depth depends on soil and moisture: wet clay and saline ground cut it, dry sandy ground helps, and a sound report states the reach section by section. Our HT/LT cable route GPR survey covers trenched and bored routes, and pre-excavation utility scanning suits short trench lengths at plants and campuses.

Timing matters. The scan is most useful after the route is drawn but before trench widths and crossing positions are frozen, and close enough to excavation that the paint is still visible.

What should be recorded once the trench is backfilled?

• The as-laid position of each cable, measured from fixed points such as kerbs, poles or pillar plinths.
• Actual cover at regular intervals and at every crossing, because dug depth often differs from the drawing.
• Positions of joints, ducts and spare pipes left for future use.
• Every existing service met during digging, with its depth, so the next team is not surprised.

These notes turn one cable job into network information the owner can use for years. If an approval needs a depth profile of services found along the route, an L-section GPR survey provides it. For the wider picture of cable construction and laying options, see our guide to underground cable types, depth and laying methods.
